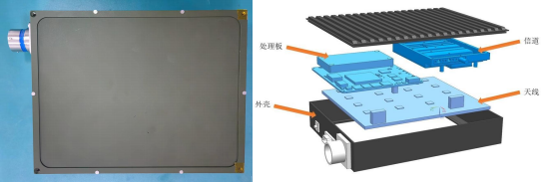

X-band Phased Array MINI-SAR-X-PA02

X-band Real-Time 2D Phased Array MINI-SAR is an ultra-lightweight airborne synthetic aperture radar capable of all-weather, day-and-night remote sensing data acquisition and real-time imaging. The total system weight is less than 1.5 kg, with power consumption under 60 W.

Technical Parameters

Operating Frequency: 9.6 GHz
Operating Bandwidth: 0.8 GHz
Operating Range: 6 km
Radar Weight: ≤ 1.5 kg
Dimensions: 200 mm × 160 mm × 55 mm
Optimal Resolution: 0.2 m × 0.2 m
Real-Time Resolution: 0.5 m × 0.5 m

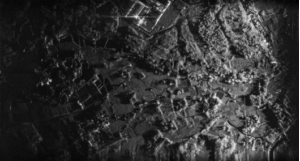

Real-Time Imaging: Imaging delay: 10 s; Imaging coverage: > 200 m × 200 m

Application Scenarios
Primarily designed for emergency response and monitoring: enables real-time situational awareness during disasters such as earthquakes, floods, landslides, and mudslides.
