X-band Phased Array MINI-SAR-X-PA01

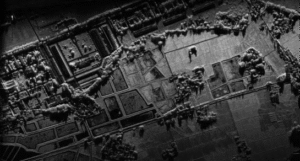

X-band 2D Phased Array MINI-SAR is an ultra-lightweight airborne synthetic aperture radar capable of all-weather, day-and-night remote sensing data acquisition and imaging. It features long operational range, immunity to light and cloud limitations, and maintains consistent imaging resolution independent of flight altitude. The total system weight is less than 2.5 kg, with power consumption under 50 W.

Technical Parameters

Operating Frequency: 9.6 GHz
Operating Bandwidth: 0.8 GHz
Operating Range: 6 km
Radar Weight: ≤ 2.5 kg
Dimensions: 180 mm × 150 mm × 95 mm
Optimal Resolution: 0.2 m × 0.2 m
Maximum Swath Width: 2 km

Application Scenarios
Suitable for topographic mapping, situation awareness, and maritime rights enforcement and law enforcement.
