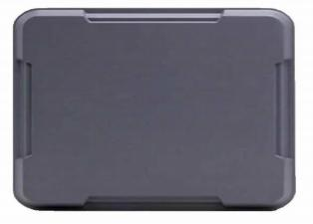

Surface Target Detection Radar

X-band Surface Target Detection Radar is capable of all-weather, fully automatic detection and tracking of various targets within its range, including surface vessels and bridges. It enables continuous monitoring of large water areas. The total system weight is less than 6 kg, with a power consumption under 70 W.

Technical Parameters
Operating Frequency: 9.6 GHz
Monitoring Angle: Horizontal 120°, Vertical 8°
Measurement Accuracy: Range: 5 m; Azimuth: 0.6°; Velocity: 0.1 m/s
Scanning Frequency: 1 s
Operating Range: Maximum detection range: 20 km
Radar Weight: ≤ 6 kg
Dimensions: 450 mm × 250 mm × 90 mm

Application Scenarios
The radar can be deployed on shore for real-time monitoring of surface targets, promptly detecting abnormal water surface activities or deviations from shipping lanes. It can also be installed on vessels to dynamically perceive surrounding surface targets and help prevent potential collisions.
