Photographic Body Security Scanner ES01

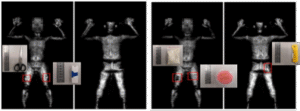

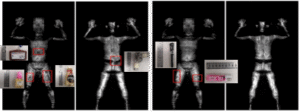

BRIT-ES01 Photographic Electronically-Scanned Body Security Scanner adopts large-scale millimeter-wave Multiple-Input Multiple-Output (MIMO) sparse array imaging technology to achieve real-time high-resolution millimeter-wave imaging of the human body. It can intelligently identify metallic and non-metallic prohibited items such as firearms, knives, explosives, and drugs concealed on the body or under clothing, promptly locating and alerting to their presence.

Technical Parameters
Line Resolution: ≤ 2 mm
Spatial Resolution: ≤ 5 mm
Screening Time: ≤ 0.8 s
Dimensions: 1350 × 2100 × 100 mm
Passageway Dimensions: Adjustable between 0.8–1.6 m
Power Supply: AC 220 V, 50 Hz
Peak Power: ≤ 1200 W
Security Check Channel: Modular design allowing configuration of different channel types based on site requirements

Application Scenarios
Airports, customs, high-speed rail stations, subways, courthouses, prisons and detention centers, large event venues, and government or military facilities with special high-level security requirements.
