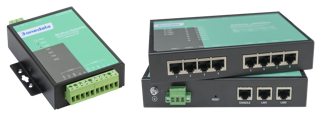

GW11xx series 1/2/4/8-port RS-232/422/485 Wall-mount Modbus Gateways

Features and Highlights

•Dual IPs&MACs, redundant or switching LAN operating mode
•IPv4, IPv6
•Single serial port isolation
•110bps-115200bps (110bps-921600bps customizable) baud rate
•Connection quantity: support up to 256 Modbus TCP client (master) accesses and connect up to 128 Modbus TCP server (slave) devices
•Intelligent learning of Modbus commands, active polling mechanism significantly reduces response time
•Specify the priority of Modbus commands to achieve timely response to critical commands
•RTU Master, RTU Slave, ASCII Master, ASCII Slave operating modes
•Support -40~75℃ wide operating temperature range
•Input voltage: dual 12~48VDC

•1/2/4/8*RS-232/422/485, 8-pin RJ45
•1/2*RS-485/422, 5-pin terminal block
•4/8*RS-485, 3-pin terminal block
•2*10/100Base-T(X) RJ45
